Additional information
| Microchip Size | 8mm x 1.4mm BioGlass |
|---|---|
| Pack Qty | 100, 1000, 5000, 10000+ |
| Pack Options | Poly Pack, Sterile Needle Pack, Sterile Tray |

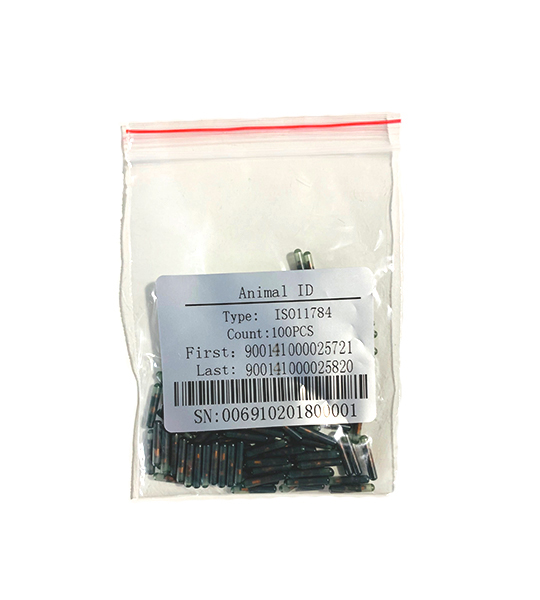

8mm x 1.4mm Bio Glass ISO PIT tag Microchip
Contact us for Prices
Swiss Quality, Glass Industrial (Microchip)
Ideal for fisheries, wildlife, security, asset and industrial applications.
Model: 1.4 x 8mm Bio-Glass
Available Operating frequency: 134.2 kHz +/- 3000
- Model: 1.4 x 8.5mm Mini Bio-Glass
- Needle size: 1.80 OD x Length = 25mm.
- Material: Bio-Glass with Parylene coating.
- IC type: EM4305 chip
- Operating frequency: 134.2 kHz +/- 3000 Hz.
- Chemical resistance: Water immersion IP68 20°c, 24 hours, 1 metre. Aqueous solution of salts
- 20°c, 100 hours. Alcohol, oil, HLC (10%) 20°c, 100 hours. Ammonia 20°c, 100 hours.
- Mechanical Resistance:
- Vibration test: IEC 68.2.6
- Shock: IEC 68.2.29
- Storage temp: -40°c to +90°c (Recommend <+30°c)
- Operating temp: -35°c to +85°c
- Read range (using a pocket 9v battery scanner): 70mm (2.75″)
